The Best Clarity of Sound

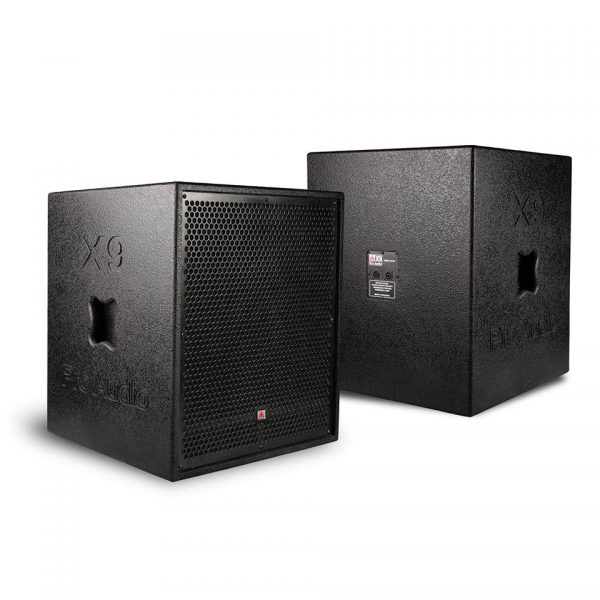

SX-1801

Share:

Share on facebook
Share on twitter
Share on pinterest
Description

Single 18in subwoofer

Operating Mode

Passive

Frequency Response (-3dB)

45-1000Hz

Operating Range

30-1000Hz

Components

LF 1 X 18in

Nominal Impedance

8 ohms

Sensitivity

98 db @ 1W/1m (free-space)

Maximum Input

56V(RMS), 400W(con’t), 1600W (peak)

Maximum Output

124 db (half-space)

DSP Recommendation

High Pass Filter 30Hz, 12db/oct

Amplifier Recommendation

400W (con’t) – 800W (con’t) @8 ohms

Dimension

634mm(h) X 535mm(w) X 535mm(d)

Weight

31 kg

Finish

Polyurethane, Powder coated grille

Enclosure

12 mm Local Multiplex

Reviews

There are no reviews yet.

Be the first to review “SX-1801”

Your email address will not be published.

Note

  • One meter referenced output using 1W pink Noise
  • Determined using pink noise 6 dB  (CF) at Maximum input for 8 continuous hours
  • Measured using pink noise 6 dB (CF) with recommended high pass filter, 100 Hz 12 Db/oct low pass filter and calculated to 1m.
  • 2000-10000 Hz Average, 4m measurement distance
