The Best Clarity of Sound

SX-1501

Share:

Share on facebook
Share on twitter
Share on pinterest
Description

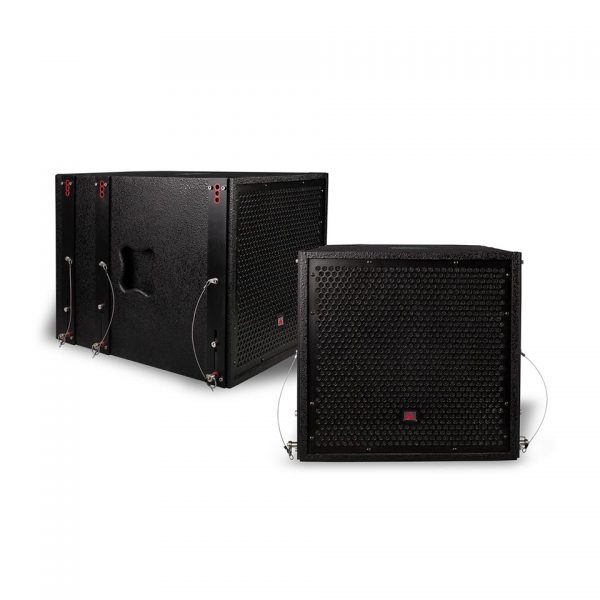

Single 15 inch subwoofer

Operating Mode

Passive

Frequency Response (-3dB)

63-1000Hz

Operating Range

47-1000Hz

Components

LF 1 X 15 inch

Nominal Impedance

8 ohms

Sensitivity

98 db @ 1W/ 1m (half-space)

Maximum Input

45V (RMS), 250W (con’t), 1000W (peak)

Maximum Output

122 db (half-space)

DSP Recommendation

High Pass Filter 40Hz, 12db/oct

Amplifier Recommendation

250W (con’t) – 500W (con’t) @8 ohms

Dimension

635mm(h) X 500mm(w) X 500mm(d)

Weight

23 kg

Finish

Polyurethane, Powder coated grille

Enclosure

15mm Local Multiplex

Reviews

There are no reviews yet.

Be the first to review “SX-1501”

Your email address will not be published. Required fields are marked *

​Enclosure Note

  • One meter referenced output using 1W pink Noise.
  • Determined using pink noise 6dB  (CF) at Maximum input for 8 continuous hours.
  • Measured using pink noise 6dB (CF) with recommended high pass filter, ​​100 Hz 12 Db/oct low pass filter and calculated to 1m.
  • 2000-10000 Hz, 4m measurement distance
Brochure Download
